V-holder

Download

Product card

Ask for the product

Product description

Made of a sheet section and a plastic holder.
Used for single-side anchoring.
Enables anchoring rods, loop anchors, corrugated anchors and hooks etc. to be anchored at an optimal 45º angle.

Assortment

Art. no.	Designation	Thread	Diameter, d₁	Length, L	Package	Weight
Art. no.	Designation	mm	mm	mm	pcs	kg/pcs
23501	V-holder	15	50	70	1	0.42
23502		20	65	80	1	0.43
23503		26.5	70	100	1	0.44

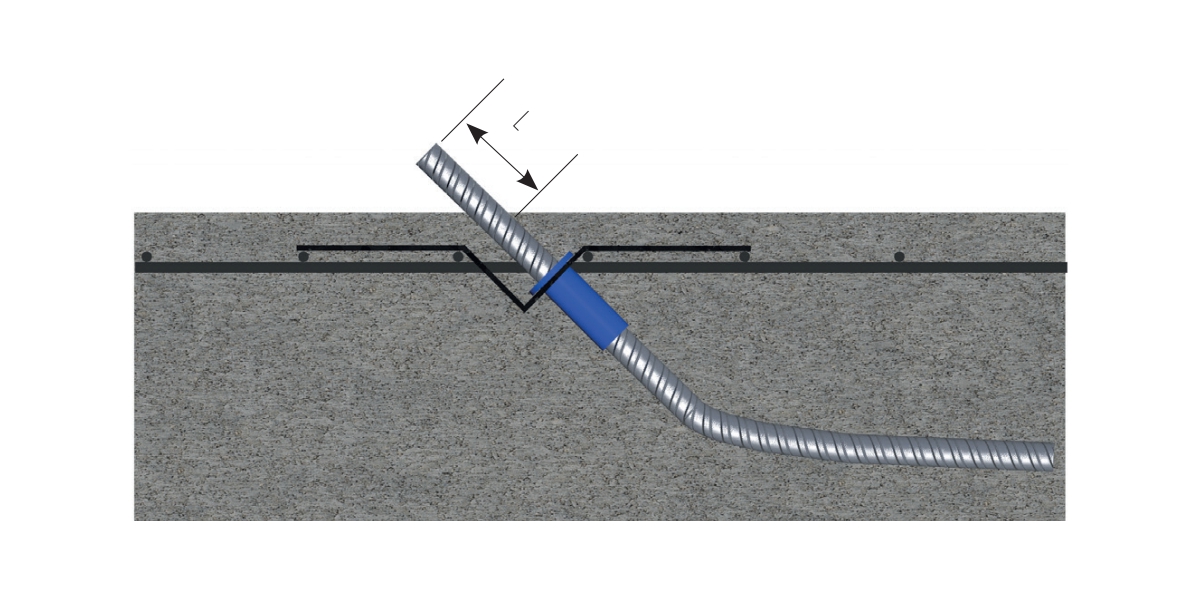

The drawing shows an example of the use of the V-holder with an loop anchor.
L – the length of the rod extending above the plate level, then used to connect with a nut.
