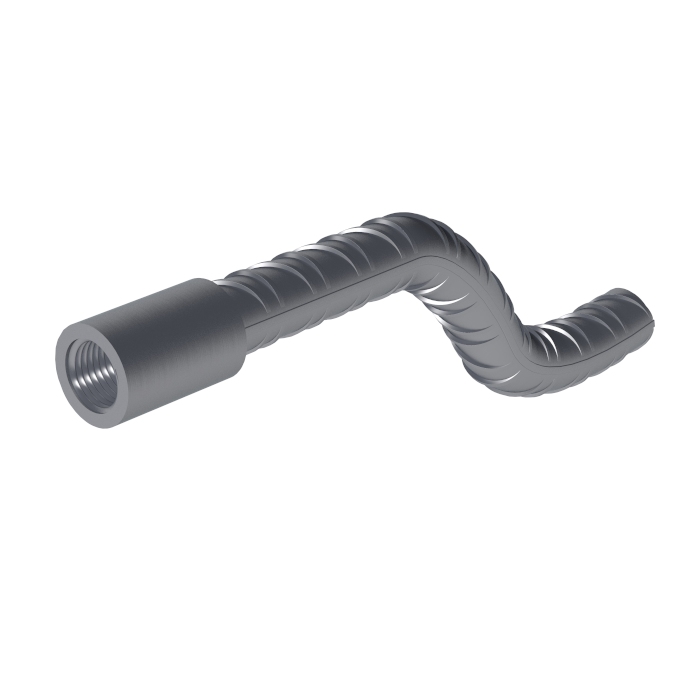

Transport anchors with the clamped rebar

Transport anchors with the clamped rebar

Download

Product cardProduct cardAsk for the productAsk for the product



Assortment

Determining the weight with different bar lengths

Bar diameter Weight
mm kg/m
8 0.40
10 0.61
12 0.89
14 1.21
16 1.58
20 2.47
25 3.85
28 4.83
32 6.31
40 9.86



Metric thread

Art. no. Metric thread, d x L Load
mm kg
30901 M12x150 500
30902 M12x180 800
30903 M16x230 1200
30904 M20x260 2000
30905 M24x300 2500
30906 M30x420 4000
30907 M36x460 6300
30908 M42x500 8000





Round thread with a metric pitch

Art. no. Metric thread, d x L Load
mm kg
31001 Rd12x150 500
31002 Rd14x180 800
31003 Rd116x230 1200
31004 Rd18x260 1600
31005 Rd20x260 2000
31006 Rd24x300 2500
31007 Rd30x420 4000
31008 Rd36x460 6300
31009 Rd42x500 8000
