Thermotec B, C

Thermotec B, C Thermotec B, C

Download

Product cardProduct cardAsk for the productAsk for the product



Thermotec B/C connector

Thermotec of the B and C types is a safe and easy to install method of connecting the ceiling with the supported balcony slab. These connectors only transfer shear forces acting in one direction, not transfer bending moments.
Their main advantages are:

Load capacities given in tables have been prepared for typical cases and the reinforcement ratio at the level of 0.5% and 1%. Load capacities for higher ratios of the reinforcement, elements close to edges and fastener systems can be determined according to the procedure in the last chapter of the catalogue.

Connectors allow transfer of transverse forces acting on the joint of the supported balcony slab and the ceiling slab.



Characteristics of the Thermotec B connector: :



Thermotec B designation scheme :



Connectors dimensions

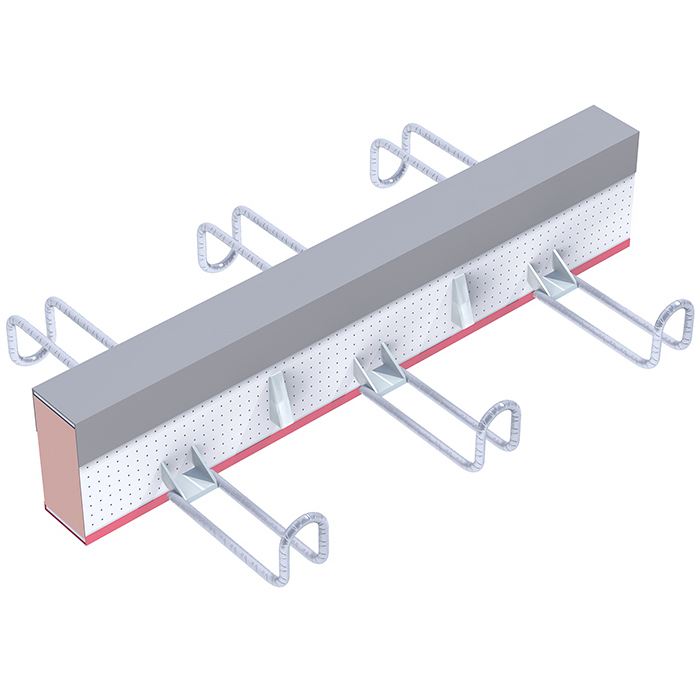

Thermotec B
Connector type Number of hangers Number of bearings io L H
mm mm mm
2-1000 2 2 30-120 1000 160-250
3-1000 3 2 1000
2-500 2 2 500

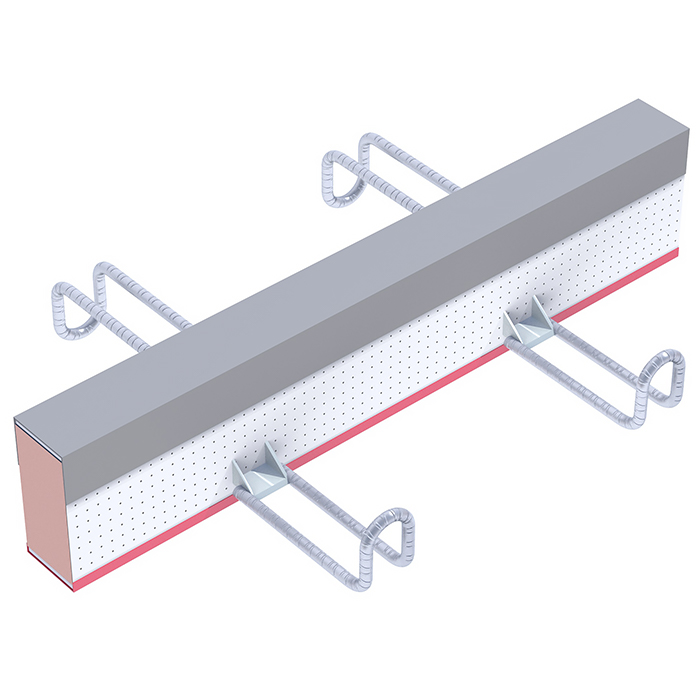

Thermotec C
Connector type Number of hangers io L H
mm mm mm
2-1000 2 30-120   1000 160-250
3-1000 3 1000
2-500 2 500





Lambda equivalent table of Thermotec B and C connectors

Thermotec B
H 160  170  180  190  200  210  220  230  240  250
Type λeq Req λeq Req λeq Req λeq Req λeq Req λeq Req λeq Req λeq Req λeq Req λeq Req
2-1000 0,17 0,46 0,16 0,49 0,16 0,51 0.15 0,54 0,14 0,56 0,14 0,59 0,13 0,61 0,13 0,63 0,12 0,66 0,12 0,68
3-1000 0,20 0,41 0,19 0,43 0,19 0,45 0,17 0,48 0,16 0,50 0,15 0,52 0,15 0,54 0,14 0,56 0,14 0,58 0,13 0,60
2-500 0,27 0,30 0,26 0,31 0,26 0,33 0,23 0,35 0,22 0,36 0,21 0,38 0,20 0,39 0,20 0,41 0,19 0,43 0,18 0,44
Thermotec C
2-1000 0,07 1,19 0,06 1,24 0,06 1,28 0,06 1,33 0,06 1,38 0,06 1,42 0,05 1,46 0,05 1,5 0,05 1,54 0,05 1,58
3-1000 0,09 0,88 0,09 0,92 0,08 0,96 0,08 1,00 0,08 1,04 0,07 1,08 0,07 1,12 0,07 1,15 0,07 1,19 0,07 1,22
2-500 0,11 0,70 0,11 0,74 0,10 0,77 0,10 0,81 0,10 0,84 0,09 0,87 0,09 0,90 0,09 0,93 0,08 0,96 0,08 0,99





Assembly instructions- Thermotec B/C

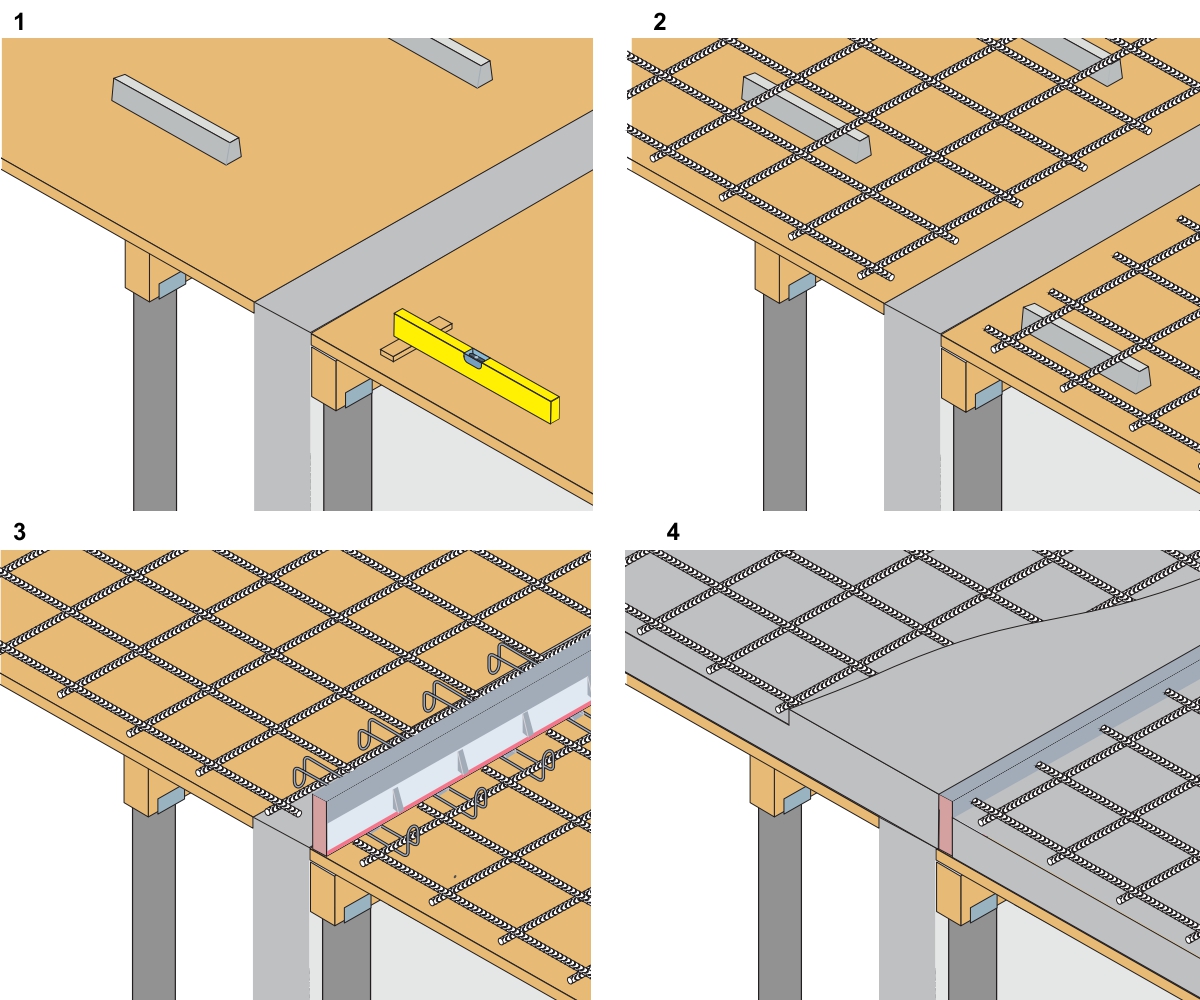

Installation of balcony connectors when balconies are made on site

  1. Installation and levelling of formwork.
  2. Installation of bottom reinforcement.
  3. Installation of Thermotec connectors and linking them to the existing reinforcement.
  4. Concreting the slab and balcony it is also possible to pour the balcony and ceiling slab in various stages.

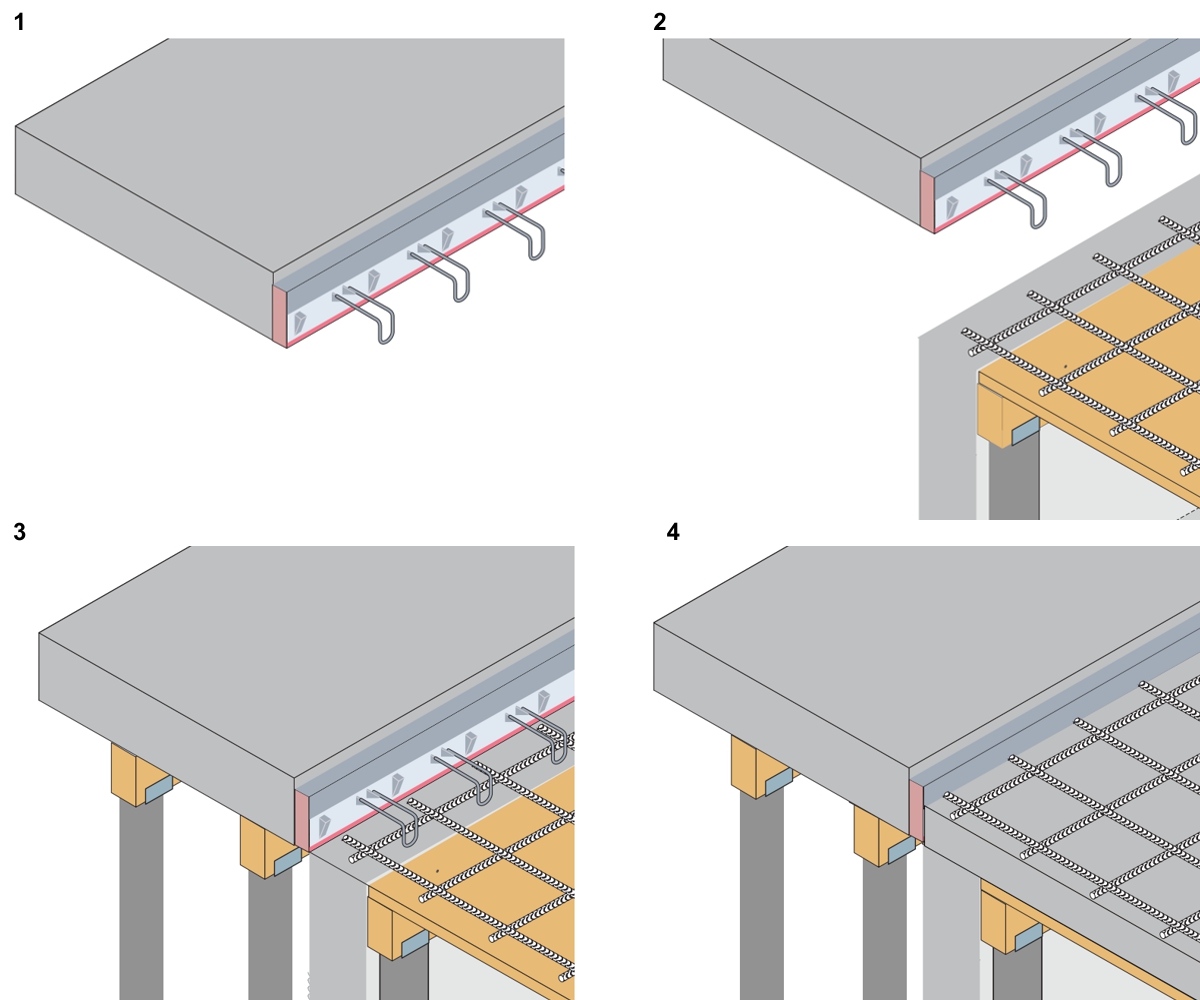

Installation of balcony connectors when balconies are made in prefabrication workshop

  1. Preparation of the slab in the prefabrication workshop.
  2. Installation of the prefabricated element at the destination place after it has been transported to the construction site.
  3. Binding the Thermotec connector to the existing reinforcement.
  4. Pouring the slab.



Notes:
- strictly observe the assembly direction marked on the connector,
- the presented diagram is a recommendation that draws attention to the most important aspects of connector assembly. Specific cases and solutions used on the construction site may need to be completed. The contractor is responsible for the correct installation, method. In order to clarify any questions or doubts, please contact the EXTREA technical department.
