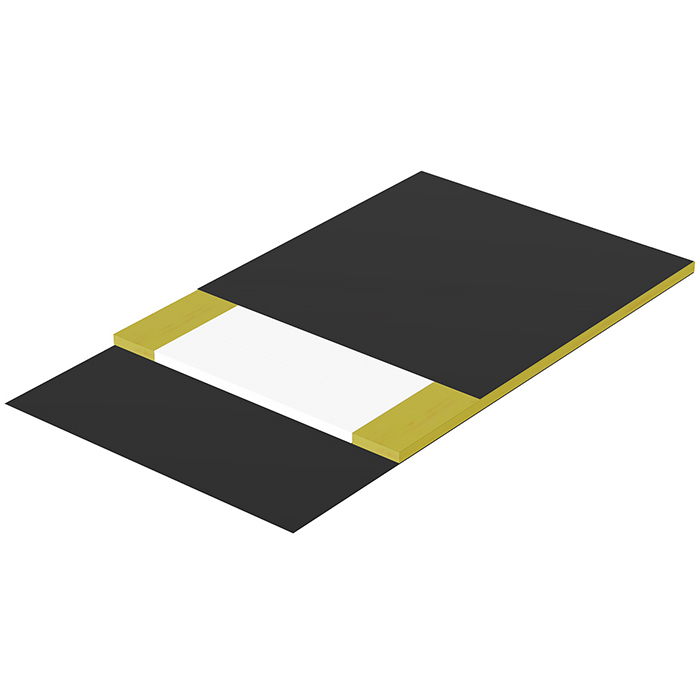

TG 5 POM type slide films

Download

Product description

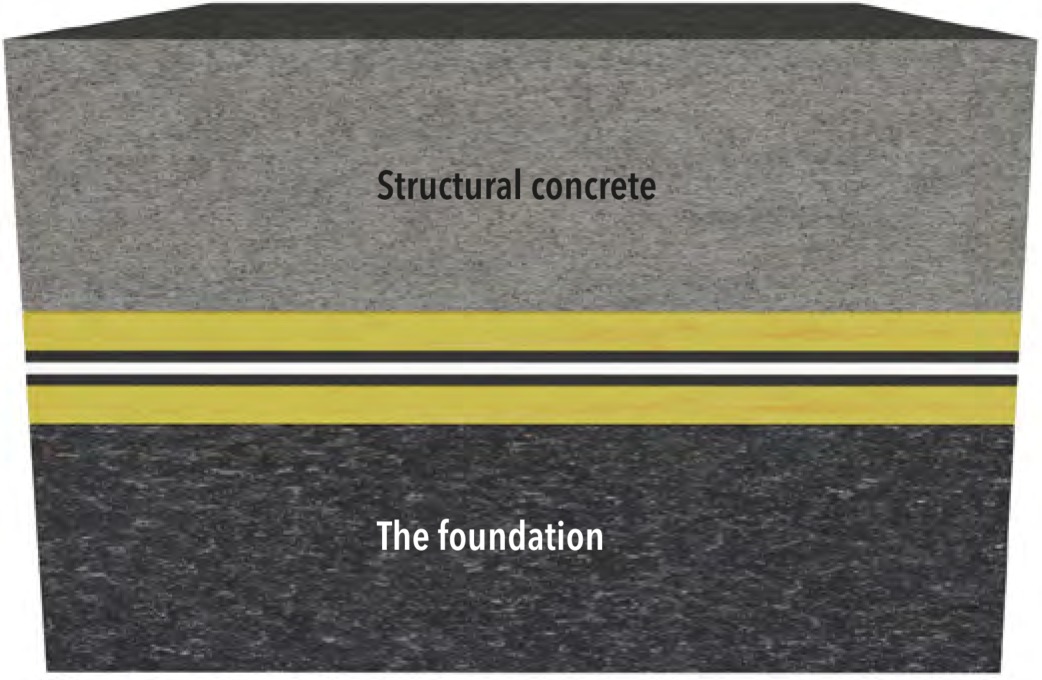

TG 5 POM type slide films laminated with elastomer are designed to separate elements subjected to loads up to 10 N/mm², e.g. within the foundation, as well as to limit forces arising from temperature changes, creep and shrinkage of components or structure settlement.

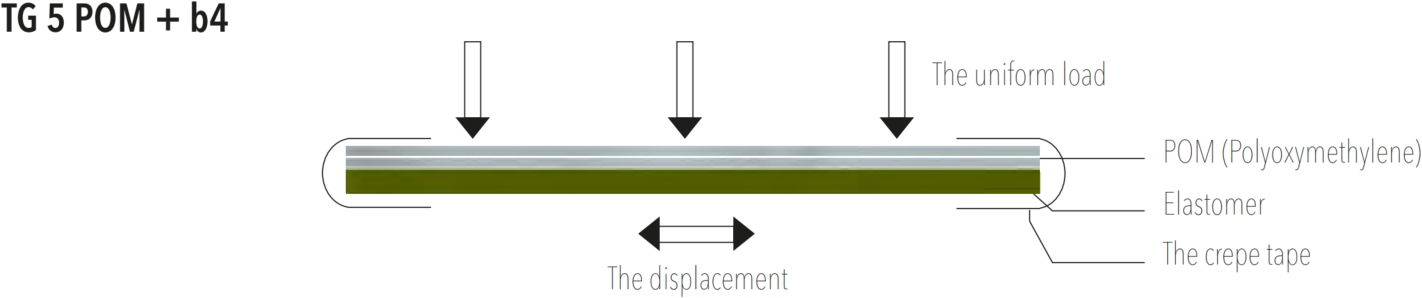

for elements concreted on the site - for elements concreted on the site,

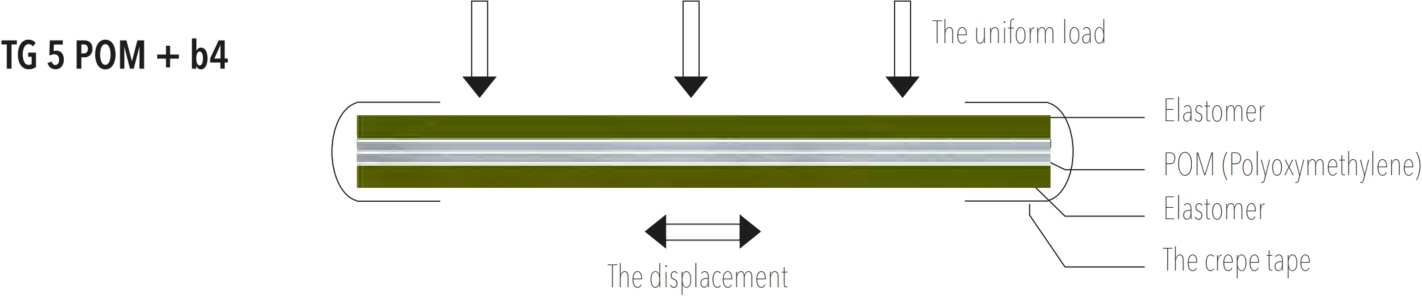

for prefabrications - the slide film laminated with elastomer on both sides,

Lamination with the elastomeric layer is required to compensate for existing unevenness and slight deviations in parallelism of the contact surface.

Type	The maximum stress	The coefficient friction	The temperature	The thickness
Type	N/mm²	The coefficient friction	°C	mm
The slide film TG 5 POM + b4	10	0,05 to 0,10	23	4
The slide film TG 5 POM + c4	10	0,05 to 0,10	23	6

The standard length: 1 m.
The width: all wall widths used.

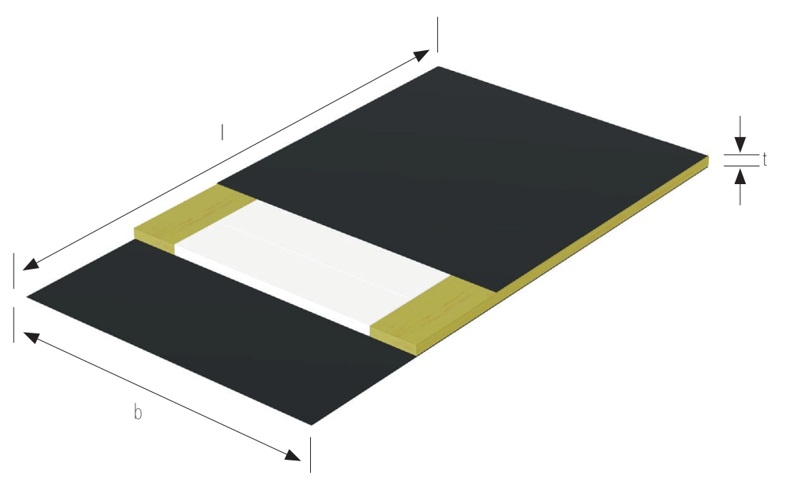

Specification: t x b x l mm RUBA TG 5 POM +… type
