Product description
Assortment
| Art. no. | Name | Length | Weight |
| m | kg/pcs | ||
| 20201 | FS 15 | 1 | 1.44 |
| 20202 | FS 20 | 1 | 2.50 |
| 20203 | FS 26.5 | 1 | 4.48 |
| Technical specifications | SAS 15 | SAS 20 | SAS 26.5 |

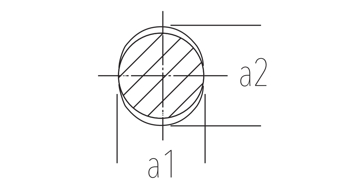

| Outer diameter a, mm |
17.0 | 23.0 | 30.0 |
| Core diameter b, mm |
15.0 | 20.0 | 26.5 |

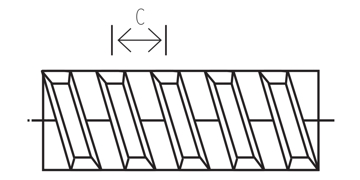

| Thread pitch c, mm |
10.0 | 10.0 | 13.0 |
| Useful load, kN |
90 | 160 | 300 |
| Breaking force, kN | 186 | 330 | 570 |
