Non-standard type ExBox

We also supply ExBox elements in the following variants:

• The rail length up to 2.50 m.
• Rail widths: 50, 80, 90, 120, 150, 170, 190, 210, 240 mm.
• Eyelet types according to drawings.
• Reinforcement steel ∅ 8, 10 i 12 mm - typical.
• Typical bar spacings 15, 20 i 25 cm.
• Possible different bar spacing.
• The eyelet width must be at least 2 cm smaller than the width of the reinforced element.


ExBox N bar sets - W type

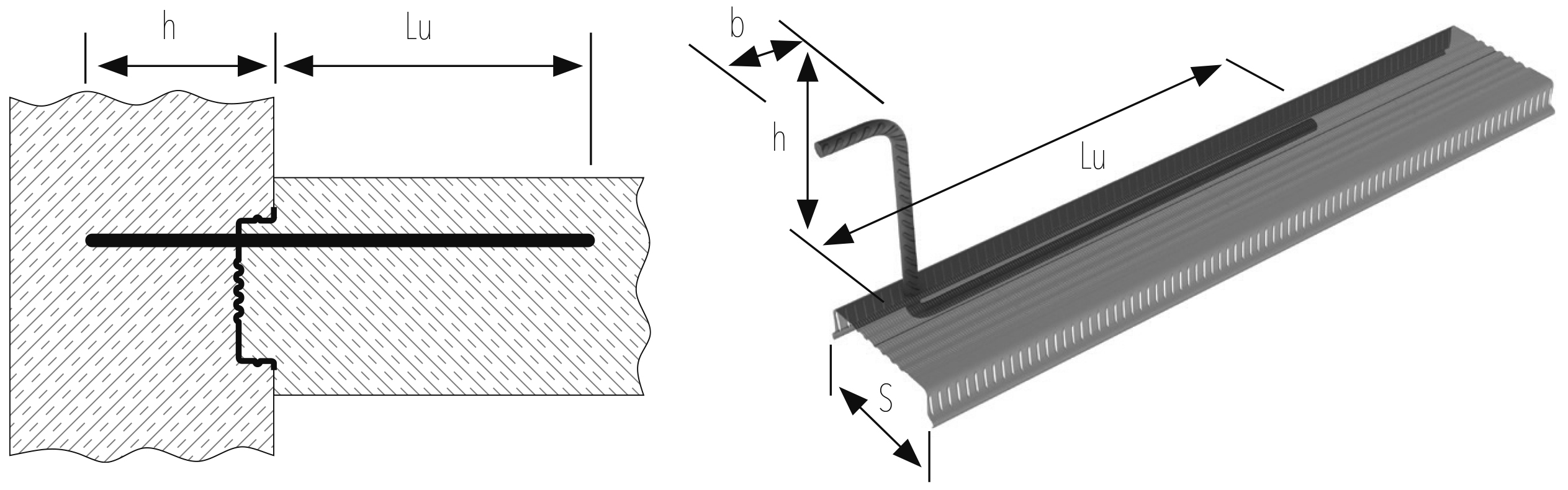

ExBox N bar sets - WH type

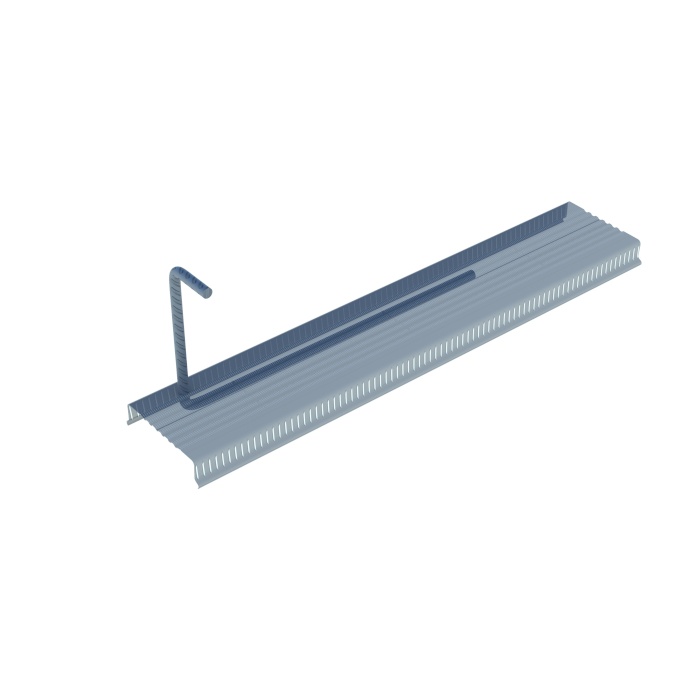

ExBox N bar sets - WS type

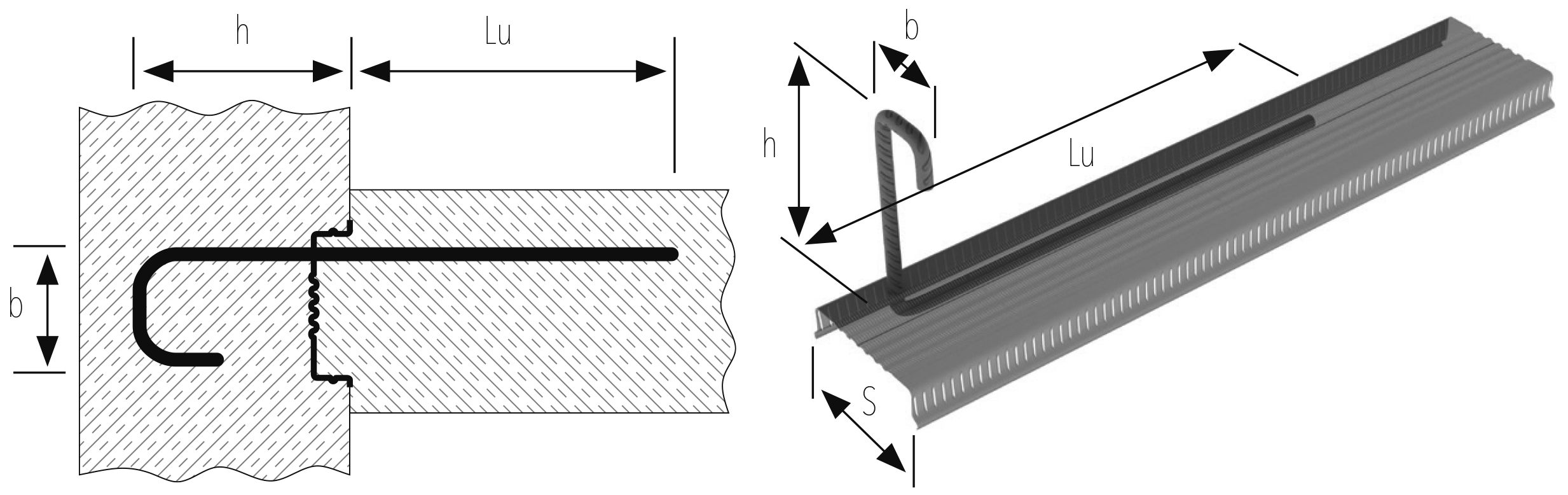

ExBox N bar sets - H type

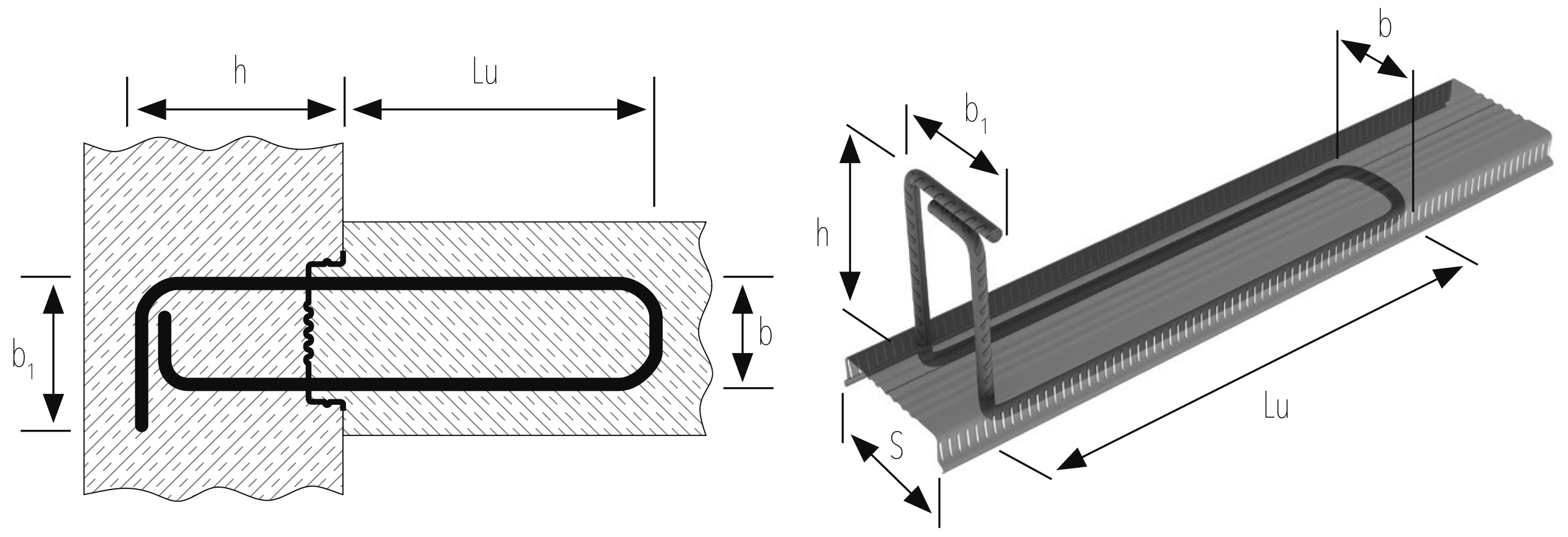

ExBox N bar sets - BK type

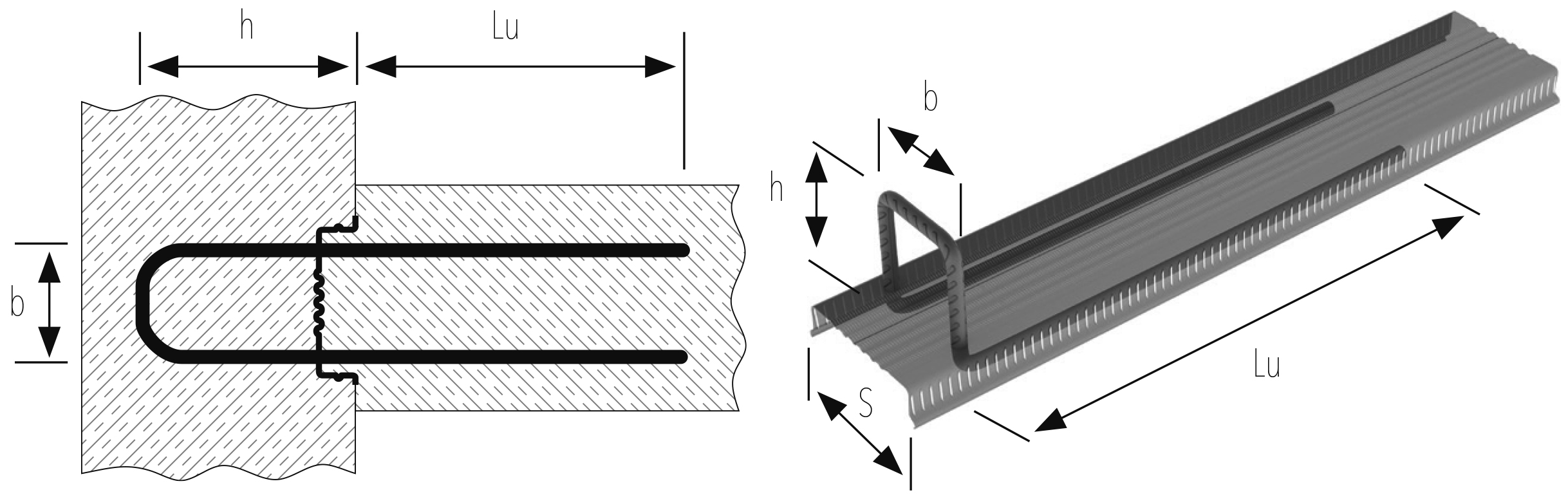

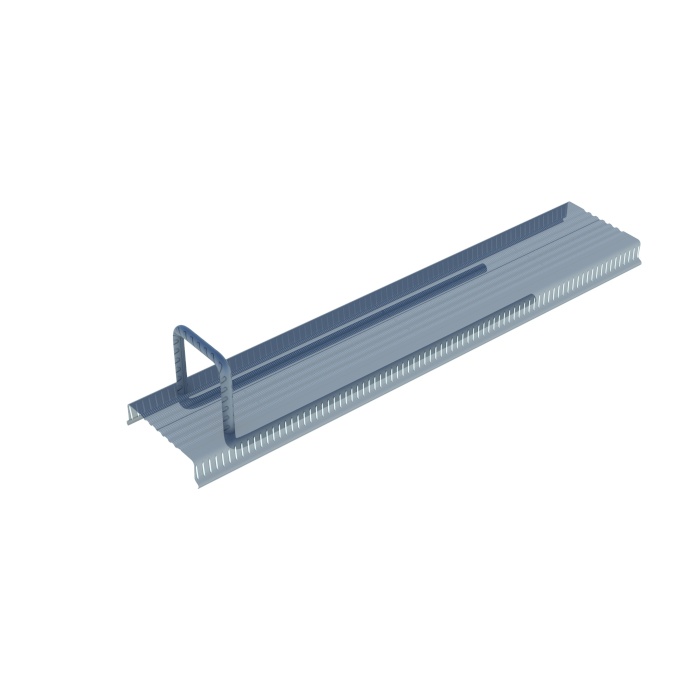

ExBox N bar sets - S type

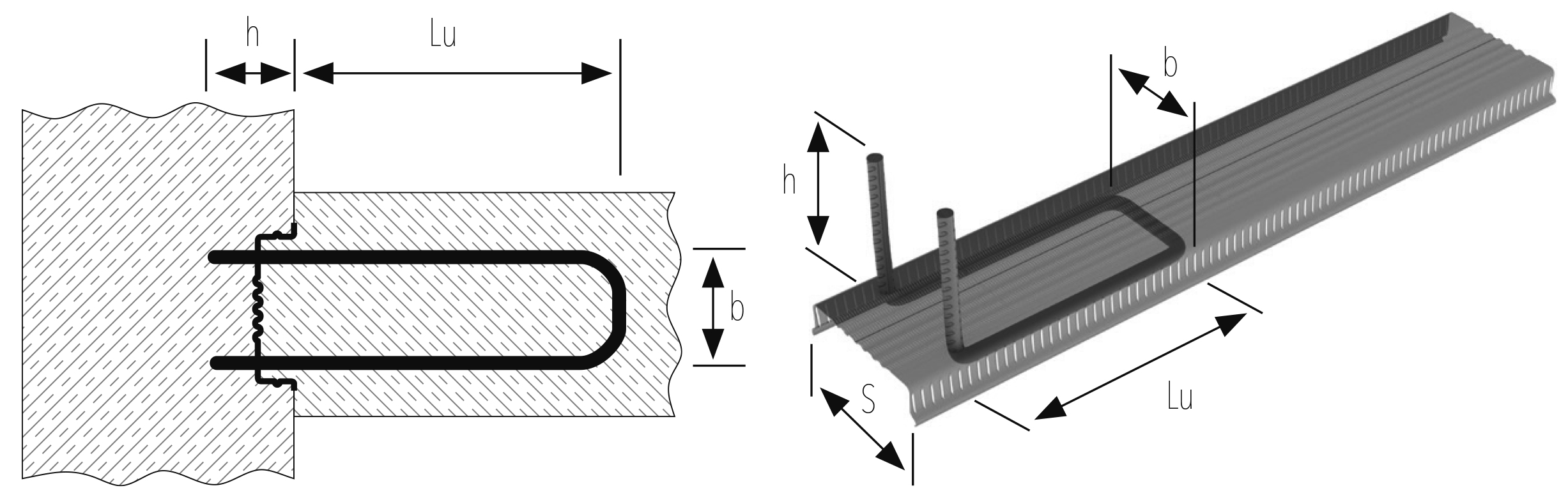

ExBox N bar sets - KO type

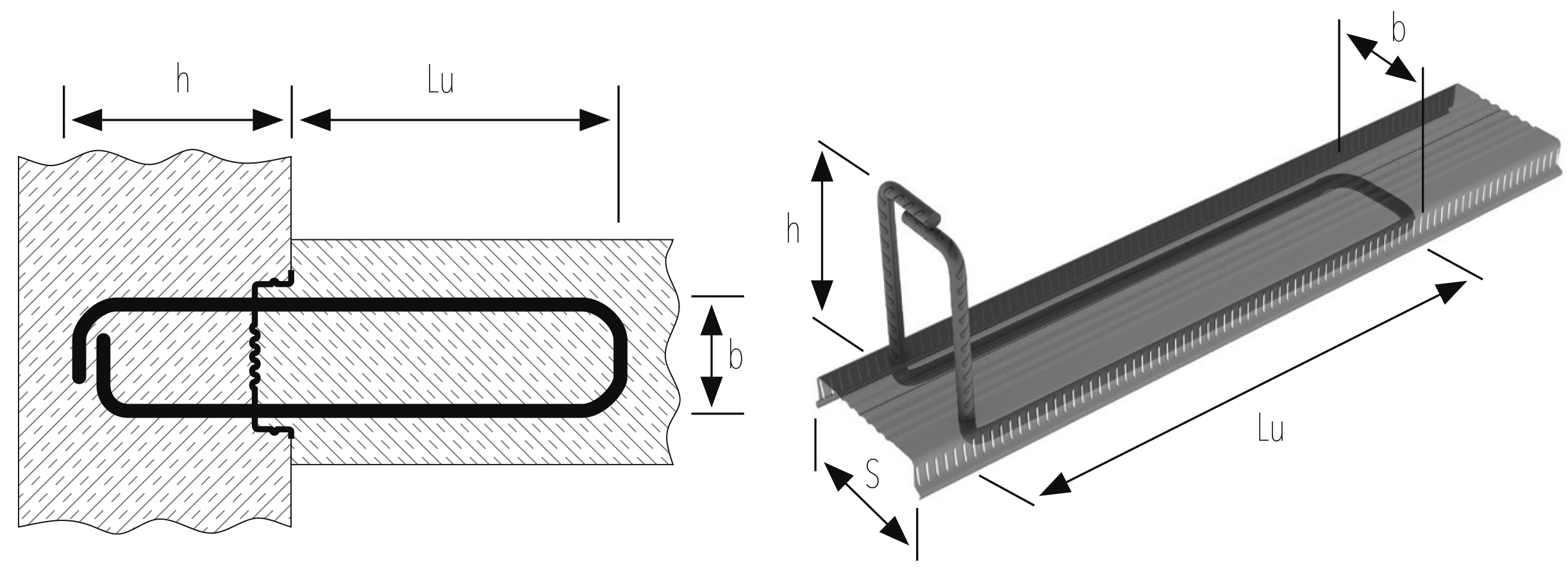

ExBox N bar sets - K type

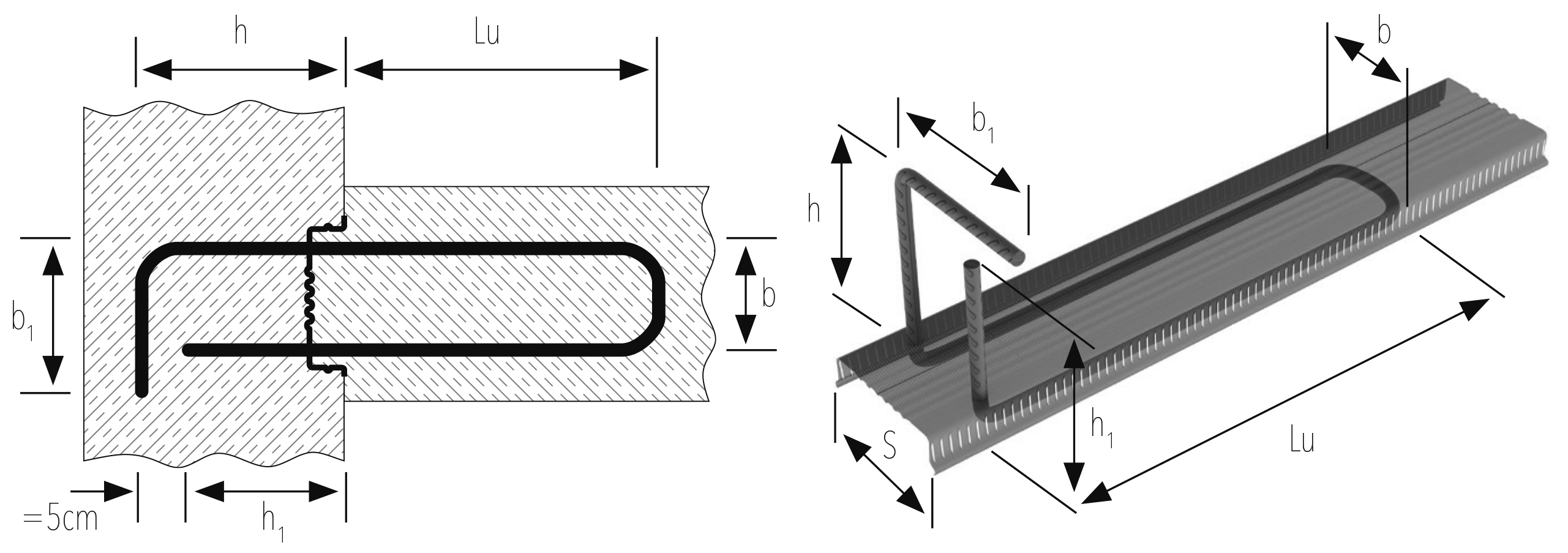

ExBox N bar sets - KH type

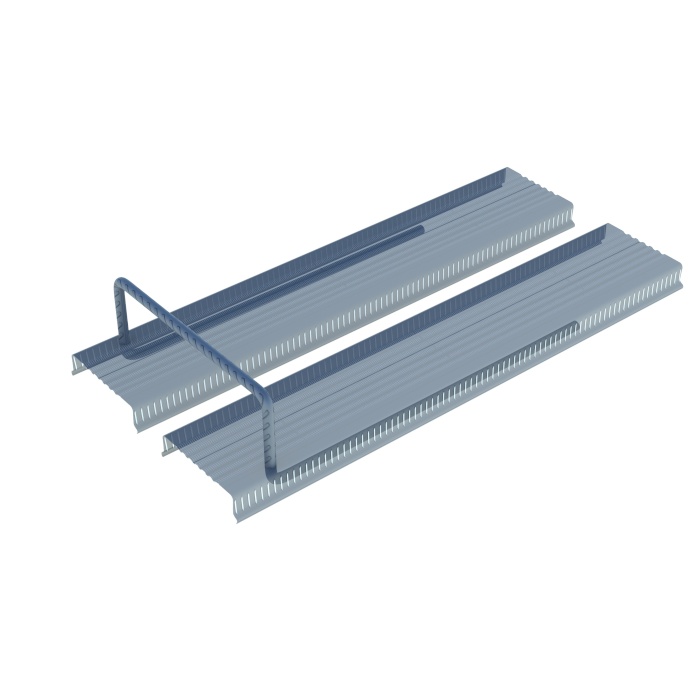

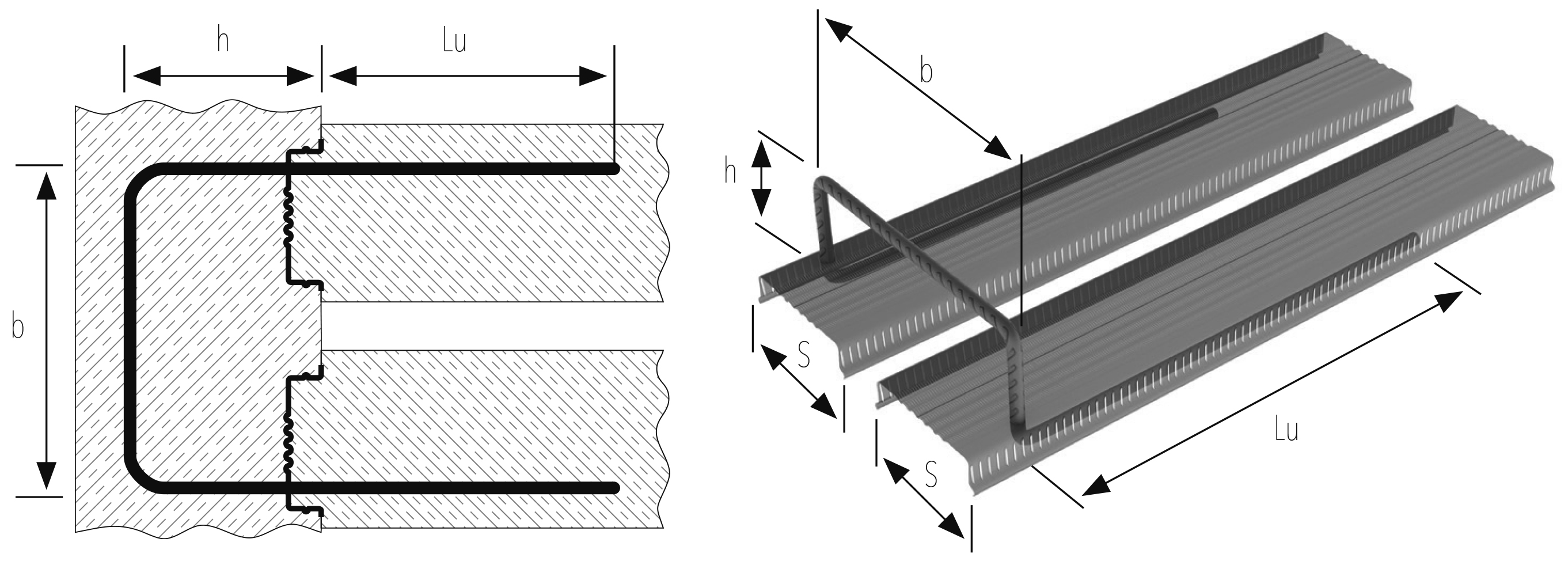

ExBox N bar sets - B type

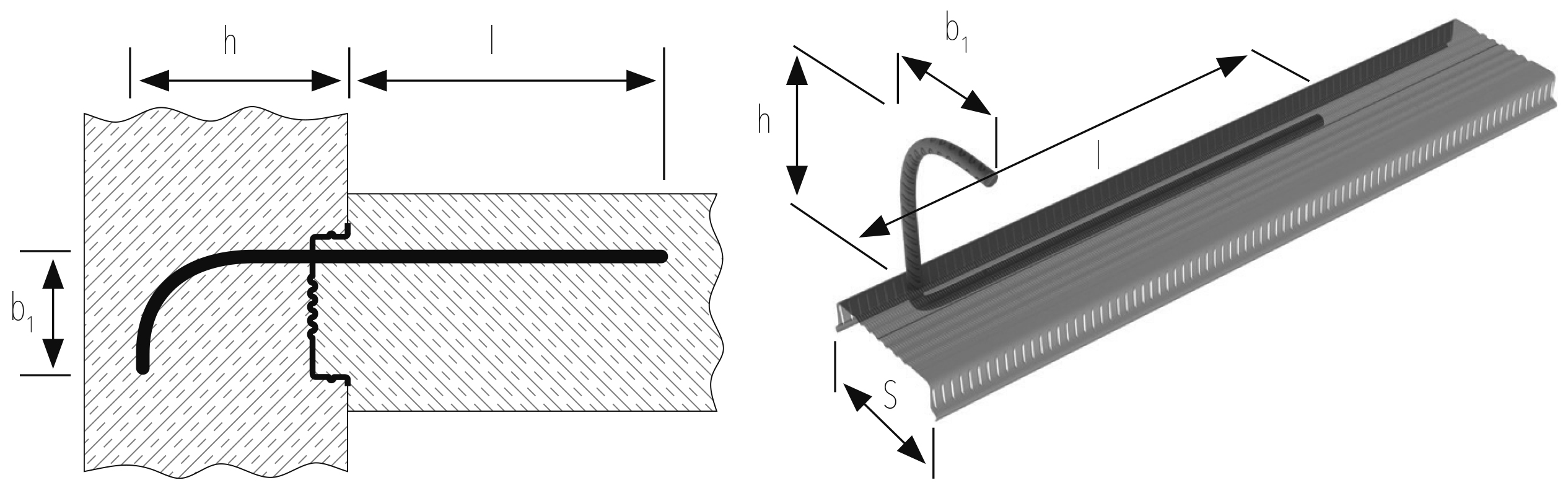

ExBox N bar sets - BA type

ExBox N bar sets - BA+H type

The ExBox, made in accordance with DIN 1045, transfers up to 80% of loads permissible for a connection made using the traditional method.
