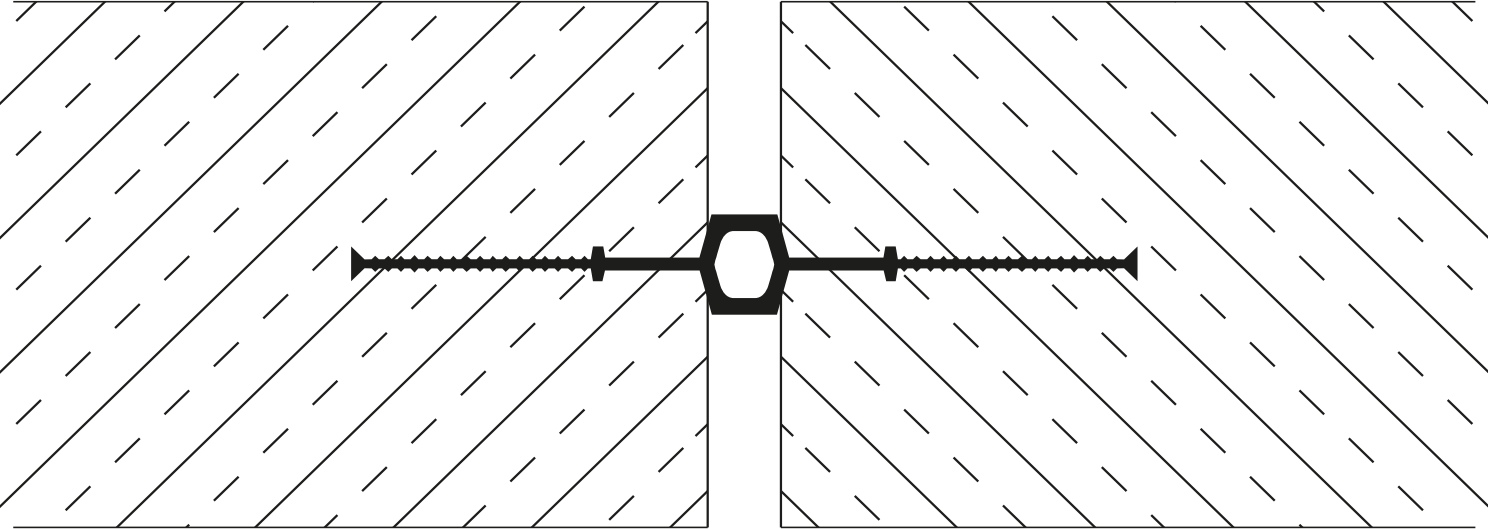

Internal tapes for expansion joints - D type



Application

For sealing expansion joints in places such as:



Characteristics:









Assortment

Type Available variants a b c Roll length
mm mm mm m
Internal tapes for expansion joints - D 100 PVC-P nb 100 40 3.0 50
Internal tapes for expansion joints - D 150 150 50 3.0 25
Internal tapes for expansion joints - D 190 PVC-P nb / DIN bv 190 75 3.0 25
Internal tapes for expansion joints - D 240 240 85 4.0 25
Internal tapes for expansion joints - D 320 320 110 5.0 25
Internal tapes for expansion joints - D 400 400 125 5.5 25
Internal tapes for expansion joints - D 500 500 160 6.0 25
Internal tapes for expansion joints - D 250/6 250 120 6.0 25
Internal tapes for expansion joints - D 320/6 320 170 6.0 25
Internal tapes for expansion joints - D 250/9 250 120 9.0 25
Internal tapes for expansion joints - D 320/9 320 120 9.0 25



* Tapes are available in a version resistant (BV) and not resistant (NB) to bitumen.
** The full list of tape types is available in our Technical Approval. In addition, we are able to produce tapes with non-standard dimensions at the customer's request.
