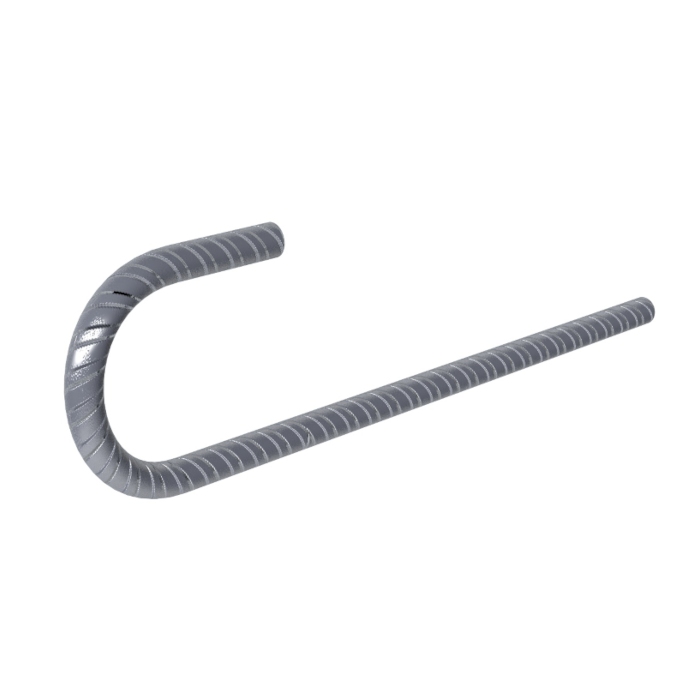

Hook anchor

Download

Ask for the product

Product description

The anchor is made of a threaded rod 15, 20 or 26.
The anchor with the possibility of bending and welding.

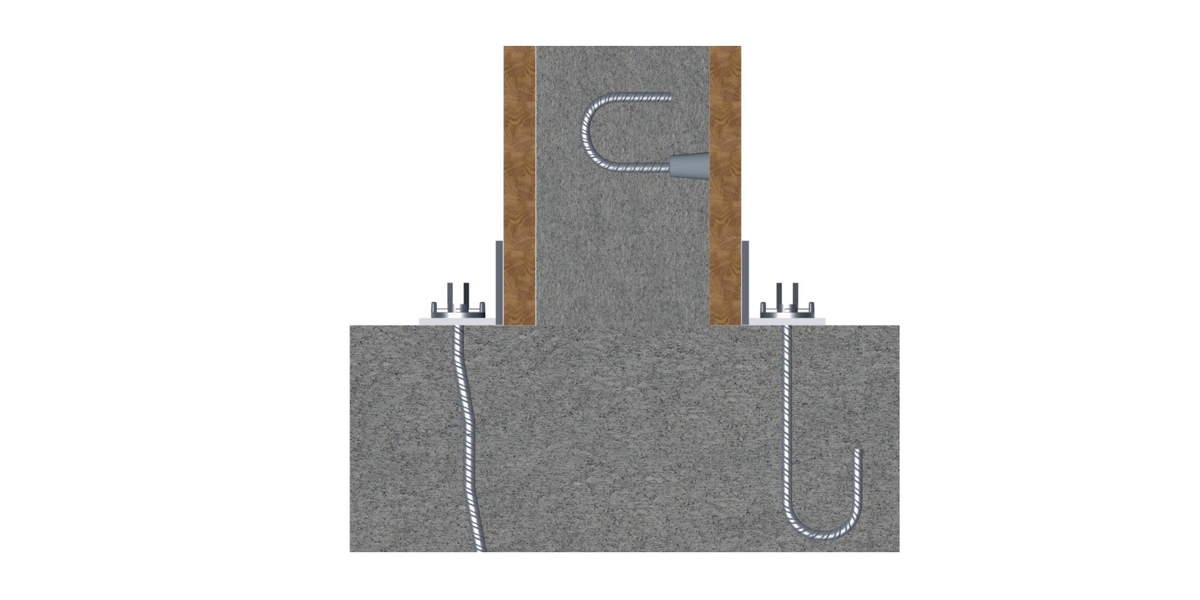

A wide range of use in construction as with a corrugated anchor – it is ideal for smaller wall thicknesses.

Assortment

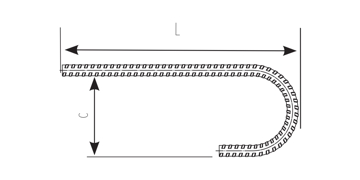

Art. no.	Designation	Thread	L	c	Package	Useful load	Weight
Art. no.	Designation	mm	mm	mm	pcs	kN	kg/pcs
23301	Hook anchor	15	250	120	1	90	0.72
23302		15	450	120	1	90	1.00
23303		20	600	150	1	160	2.23
23304		26.5	800	160	1	220	6.00
