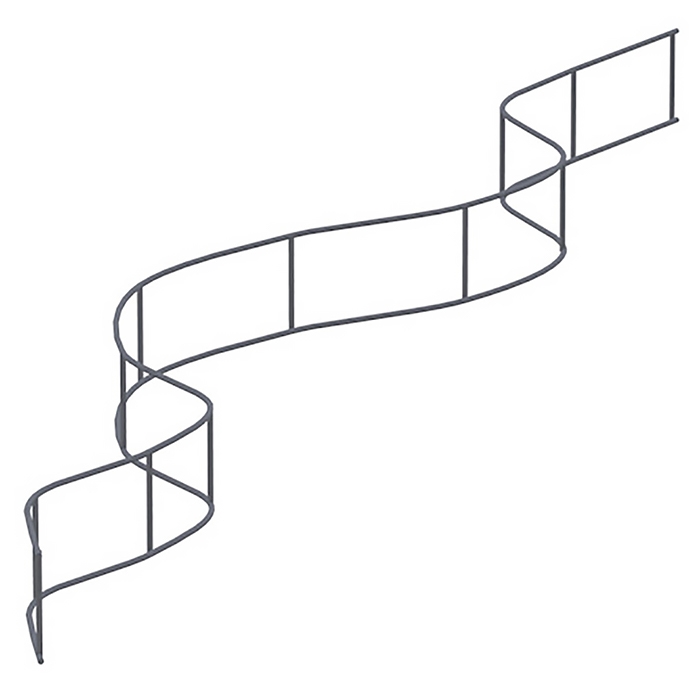

Extrea ZET

Download

Ask for the product

Product description:

Length - 2.4 m
Z-shaped,
total length of the figure - 2.0 m

Assortment

Art. no.	Designation	Heigth	Length	Package	The quantity on the palette
Art. no.	Designation	mm	m	pcs	pcs
61301	Extrea ZET 40	40	2	25	2000
61302	Extrea ZET 50	50	2	25	1500
61303	Extrea ZET 60	60	2	25	1000
61304	Extrea ZET 70	70	2	25	1000
61305	Extrea ZET 80	80	2	25	1000
61306	Extrea ZET 90	90	2	25	900
61307	Extrea ZET 100	100	2	25	800
61308	Extrea ZET 110	110	2	25	700
61309	Extrea ZET 120	120	2	25	600
61310	Extrea ZET 130	130	2	25	600
61311	Extrea ZET 140	140	2	25	600
61312	Extrea ZET 150	150	2	25	500
61313	Extrea ZET 160	160	2	25	500
61314	Extrea ZET 170	170	2	25	500
61215	Extrea ZET 180	180	2	25	500
61316	Extrea ZET 190	190	2	25	400
61317	Extrea ZET 200	200	2	25	400
61318	Extrea ZET 210	210	2	25	400
61319	Extrea ZET 220	220	2	25	400
61320	Extrea ZET 230	230	2	25	300
61321	Extrea ZET 240	240	2	25	300
61322	Extrea ZET 250	250	2	25	300
61323	Extrea ZET 260	260	2	25	300
61324	Extrea ZET 270	270	2	25	300
61325	Extrea ZET 280	280	2	25	300
61326	Extrea ZET 290	290	2	25	300
61327	Extrea ZET 300	300	2	25	300
61328	Extrea ZET 310	310	2	25	300
61329	Extrea ZET 320	320	2	25	300
61330	Extrea ZET 330	330	2	25	300
61331	Extrea ZET 340	340	2	25	200
61332	Extrea ZET 350	350	2	25	200

Technical properties
Properties and technical specifications:

Available in length L = 2.4 m - the total length of the figure is 2 m.
The minimum consumption is 1 pc/m².
The useful load of washers in a linear arrangement is 0.67 kN/m.
The minimum height of the element is 40 mm - the maximum is 350 mm.
For bars with a diameter of less than 8 mm, the spacing should not exceed 50 cm.
For bars with a diameter of 8 mm to 12 mm, the spacing should not exceed 70 cm, additionally, the useful load of washers must not be exceeded.
For bars with a diameter greater than 12 mm, the spacing may be recalculated depending on the permissible operational load for washers.

Extrea ZET - Exemplary mounting
