Application

This type of connection is used when it is possible to rotate the connected bar and move it along its axis.

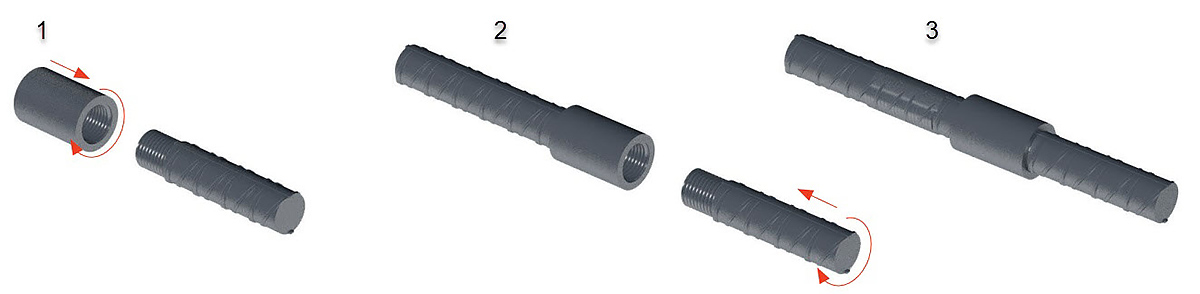

  1. The standard ES sleeve is screwed onto the base bar. The sleeve should be screwed on halfway (screw in until you feel resistance).
  2. To the base bar with the sleeve, screw the bar with threading - B type.
  3. The connection is ready.



 Assortment

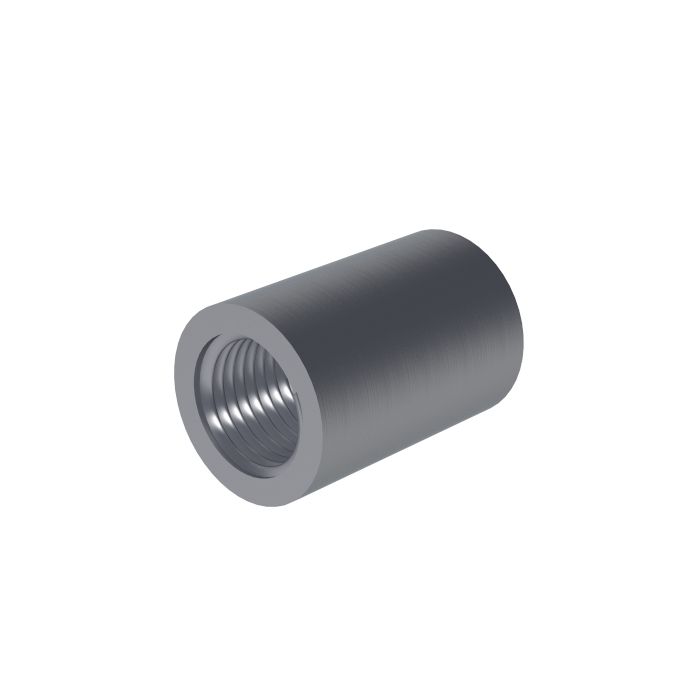

The standard nut ES

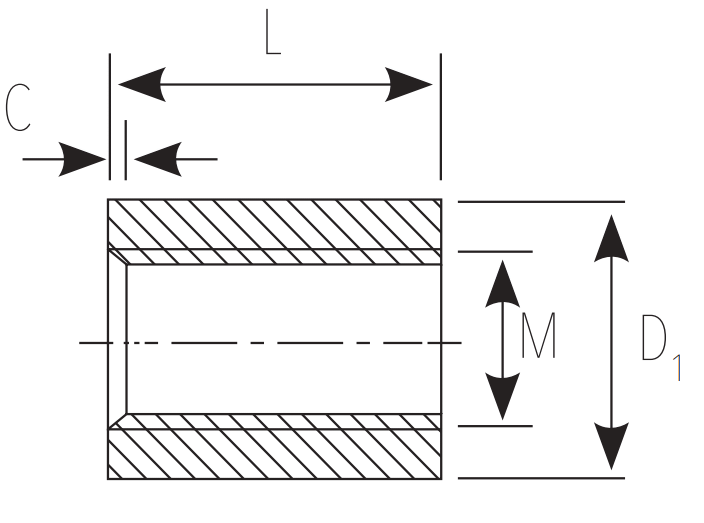

Art. no.  Designation  Thread Ext. dia., D Lenght, L
mm mm mm
30101 ES12 M14x2.0 20 28
30102 ES14 M16x2.0 24 32
30103 ES16 M20x2.5 28 40
30304 ES18 M22x2.5 32 44
30305 ES20 M24x3.0 35 48
30306 ES22 M27x3.0 36 54
30307 ES25 M30x3.5 42 60
30308 ES28 M33x3.5 48 66
30309 ES32 M36x4.0 52 72
30310 ES36 M42x4.5 60 84
30311 ES40 M45x4.5 65 90



The standard left-right nut - ERL

Art. no.  Designation  Thread Ext. dia., D Lenght, L
mm mm mm
30201 ERL12 M14x2.0 20 34
30202 ERL14 M16x2.0 24 38
30203 ERL16 M20x2.5 28 48
30204 ERL18 M22x2.5 32 52
30205 ERL20 M24x3.0 35 57
30206 ERL22 M27x3.0 36 63
30207 ERL25 M30x3.5 42 71
30209 ERL28 M33x3.5 48 77
30210 ERL32 M36x4.0 52 84
30211 ERL36 M42x4.5 60 98
30212 ERL40 M45x4.5 65 104
