Use
Assortment

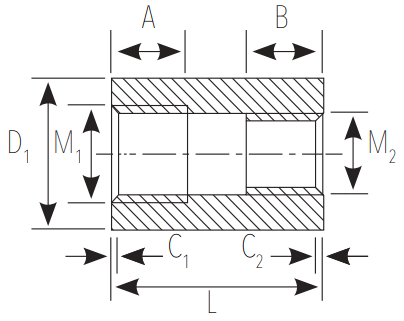

| Art. no. | Designation | Thread | Ext. dia., D | Length, L |
| mm | mm | mm | ||
| 30501 | ET14-12 | M16x2.0 M14x2.0 | 24 | 32 |
| 30502 | ET16-12 | M20x2.5 M14x2.0 | 28 | 40 |
| 30503 | ET16-14 | M20x2.5 M16x2.0 | 28 | 40 |
| 30504 | ET18-16 | M22x2.5 M20x2.5 | 34 | 44 |
| 30505 | ET20-16 | M24x3.0 M20x2.5 | 35 | 48 |
| 30506 | ET20-18 | M24x3.0 M22x2.5 | 35 | 48 |
| 30507 | ET22-20 | M27x3.0 M24x3.0 | 36 | 54 |
| 30508 | ET25-16 | M27x3.0 M24x3.0 | 42 | 60 |
| 30509 | ET25-20 | M30x3.5 M24x3.0 | 42 | 60 |
| 30510 | ET25-22 | M30x3.5 M27x3.0 | 42 | 60 |
| 30511 | ET28-20 | M33x3.5 M24x3.0 | 48 | 66 |
| 30512 | ET28-22 | M33x3.5 M27x3.0 | 48 | 66 |
| 30513 | ET28-25 | M33x3.5 M30x3.5 | 48 | 66 |
| 30514 | ET32-20 | M36x4.0 M24x3.0 | 52 | 72 |
| 30515 | ET32-25 | M36x4.0 M30x3.5 | 52 | 72 |
| 30516 | ET32-28 | M36x4.0 M33x3.5 | 52 | 72 |
| 30517 | ET36-25 | M42x4.5 M30x3.5 | 60 | 84 |
| 30518 | ET36-28 | M42x4.5 M33x3.5 | 60 | 84 |
| 30519 | ET36-32 | M42x4.5 M36x4.0 | 60 | 84 |
| 30520 | ET40-20 | M45x4.5 M24x3.0 | 65 | 90 |
| 30521 | ET40-25 | M45x4.5 M30x3.5 | 65 | 90 |
| 30522 | ET40-28 | M45x4.5 M33x3.5 | 65 | 90 |
| 30523 | ET40-32 | M45x4.5 M36x4.0 | 65 | 90 |
| 30524 | ET40-36 | M45x4.5 M42x4.5 | 65 | 90 |
