Assortment

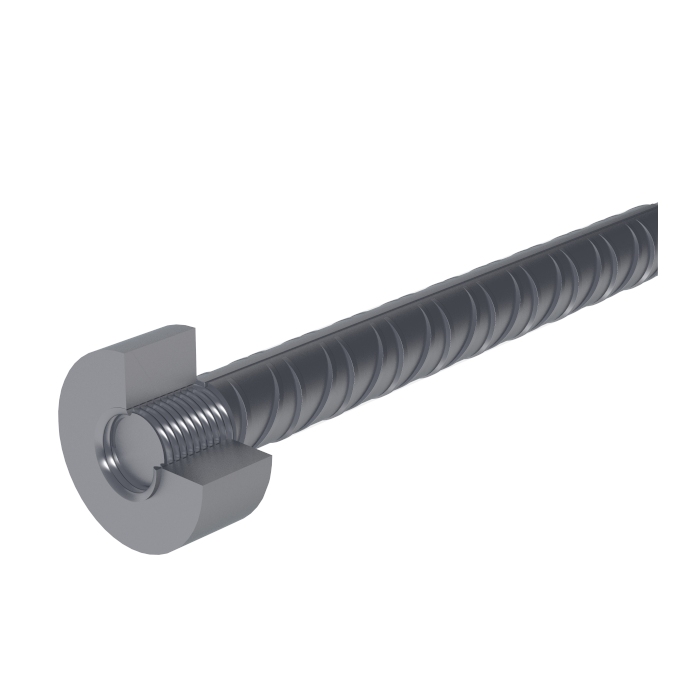

The small anchor plate - EBASC
| Art. no. | Designation | Thread | Ext. dia., D | Lenght, L |
| mm | mm | mm | ||
| 30701 | EBASC12 | M14x2.0 | 30 | 12.6 |
| 30702 | EBASC14 | M16x2.0 | 34 | 15.9 |
| 30703 | EBASC16 | M20x2.5 | 38 | 18.0 |
| 30704 | EBASC18 | M22x2.5 | 45 | 20.0 |
| 30705 | EBASC20 | M24x3.0 | 48 | 20.0 |
| 30706 | EBASC22 | M27x3.0 | 52 | 24.0 |
| 30707 | EBASC25 | M30x3.5 | 60 | 25.0 |
| 30708 | EBASC28 | M33x3.5 | 70 | 39.0 |
| 30709 | EBASC32 | M36x4.0 | 75 | 33.0 |
| 30710 | EBASC36 | M42x4.5 | 85 | 38.0 |
| 30711 | EBASC40 | M45x4.5 | 95 | 40.6 |
The large anchor plate - EBALC
| Art. no. | Designation | Thread | Ext. dia., D | Length, L |
| mm | mm | mm | ||
| 30801 | EBALC12 | M14x2.0 | 42 | 12.6 |
| 30802 | EBALC14 | M16x2.0 | 45 | 15.0 |
| 30803 | EBALC16 | M20x2.5 | 52 | 18.0 |
| 30804 | EBALC18 | M22x2.5 | 60 | 20.0 |
| 30805 | EBALC20 | M24x3.0 | 65 | 20.0 |
| 30806 | EBALC22 | M27x3.0 | 75 | 24.0 |
| 30807 | EBALC25 | M30x3.5 | 85 | 25.0 |
| 30808 | EBALC28 | M33x3.5 | 95 | 39.0 |
| 30809 | EBALC32 | M36x4.0 | 105 | 33.0 |
| 30810 | EBALC36 | M42x4.5 | 120 | 38.0 |
| 30811 | EBALC40 | M45x4.5 | 130 | 40.0 |
