Produkct description

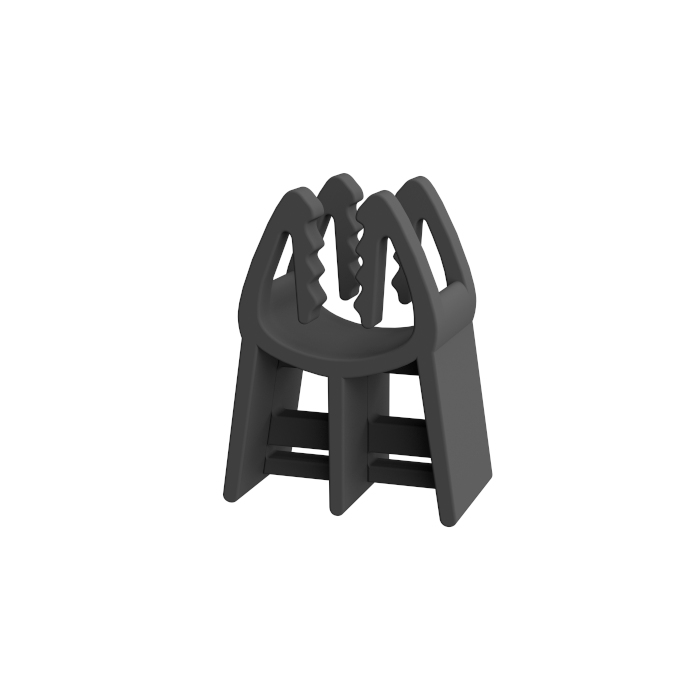

Point washer ExtraFix - spacer for horizontal reinforcement:

it is made of plastic - colored polystyrene,
it has claping jaws, garateeung tfe stability of the bars and very good adhesion with the concrete mix,
can be used for bars with diameters of 4-16 mm,
makes it possible to obtain a cover thickness of 15-50 mm, dependin on the ExtraFix type.

Assortment

Art. no.	Designation	Covering	Bar dia.	Package	Weight
Art. no.	Designation	mm	mm	pcs	kg/1000 pcs
61203F	ExtraFix 15	15	4-16	1000	4.0
61204F	ExtraFix 20	20	4-16	500	5.0
61205F	ExtraFix 25	25	4-16	500	5.7
61206F	ExtraFix 30	30	4-16	250	6.6
61207F	ExtraFix 35	35	4-16	250	7.3
61208F	ExtraFix 40	40	4-16	250	8.2
61209F	ExtraFix 45	45	4-16	125	9.2
612010F	ExtraFix 50	50	4-16	125	10.4
