External closing tapes - FA type

Download

Product card

Ask for the product

Application

For sealing expansion joints in places such as:

expansion joints of foundation slabs,
expansion joints of walls,
expansion joints of ceiling slabs.

Characteristics

Complement external or internal sealing tape systems.
Dimensional deviations in accordance with DIN 16941.

Assortment

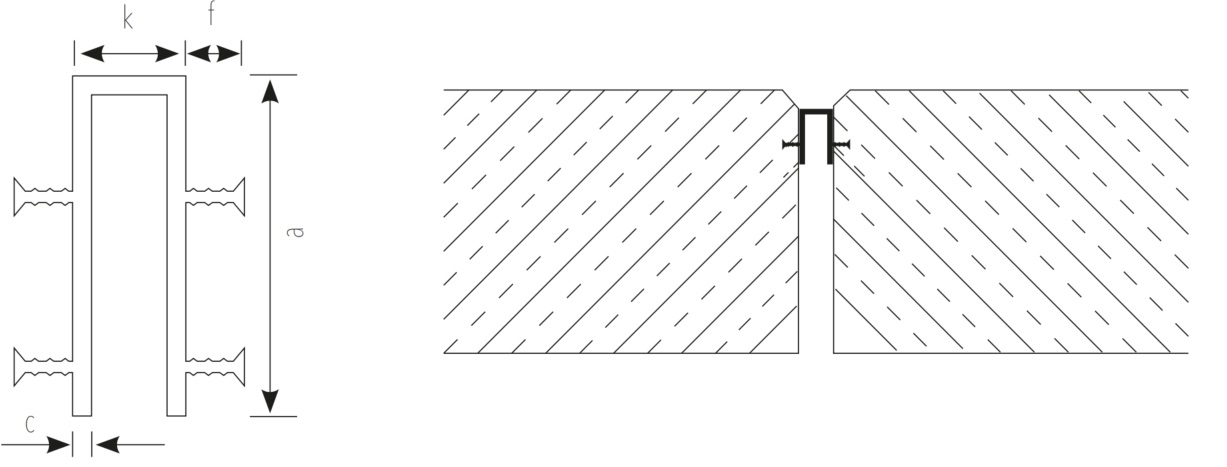

Type	Available variants	a	c	f	k	n	Joint width	Roll lenght
Type	Available variants	mm	mm	mm	mm	n	mm	m
External closing tapes - FA 50/10/20	PVC-P nb / DIN bv	50	5.0	20	20	2	10	25
External closing tapes - FA 50/10/30		50	5.0	30	30	2	10	25
External closing tapes - FA 50/20/20		50	5.0	20	30	2	20	25
External closing tapes - FA 50/20/30		50	5.0	30	20	2	20	25
External closing tapes - FA 70/20/40		70	5.0	40	20	2	20	25
External closing tapes - FA 70/40/40		70	5.0	40	50	2	40	25
External closing tapes - FA 90/20/20		95	5.0	20	20	4	20	25
External closing tapes - FA 90/20/30		95	5.0	30	30	4	20	25
External closing tapes - FA 130/20/20		140	5.0	20	20	6	20	25
External closing tapes - FA 130/20/30		140	5.0	30	20	6	20	25
External closing tapes - FA 130/30/30		140	5.0	30	40	4	30	25

n - number of anchors / anchor tongues

* Tapes are available in a version resistant (BV) and not resistant (NB) to bitumen.
** The full list of tape types is available in our Technical Approval. In addition, we are able to produce tapes with non-standard dimensions at the customer's request.
