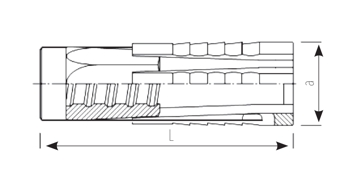

Dowel

Download

Ask for the product

Assortment

Art. no.	Designation	a	L	Useful load	Weight
Art. no.	Designation	mm	mm	kN	kg/pcs
24401	SAS 15 2-leaf pin	32	90	60	0.22
24402	SAS 15 3-leaf pin	33	120	90	0.36
24403	SAS 20 2-leaf pin	39	110	150	0.45
24404	SAS 26.5 2-leaf pin	50	120	90	0.58
