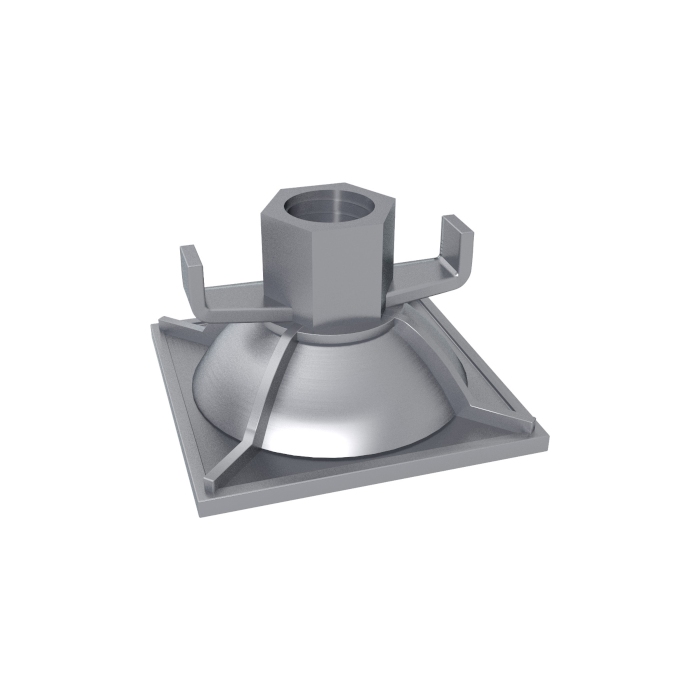

Articulated nut

Nakrętka przegubowa

Download

Ask for the product

Product description

Articulated nut with the thrust plate.
Galvanized.

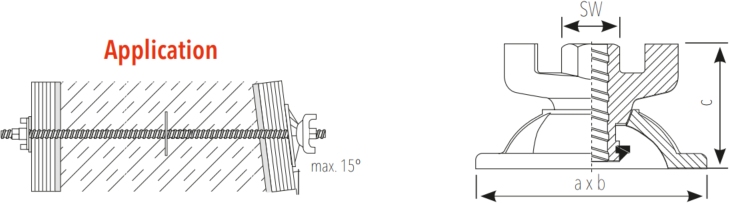

For connecting angled formwork.
Compatible with SAS systems.

Assortment

Art. no.	Article	Thread	Dimensions	SW	Package	Useful load	Weight
Art. no.	Article	mm	a x b x c (mm)	mm	pcs	kN	kg/pcs
21001	Articulated nut	15	120 x 120 x 65	27	10	90	1.26
21002		15	120 x 120 x 67	27	10	90	1.35
21003		15	140 x 100 x 65	27	10	90	1.34
21004		15	200 x 150 x 68	27	10	90	1.34
