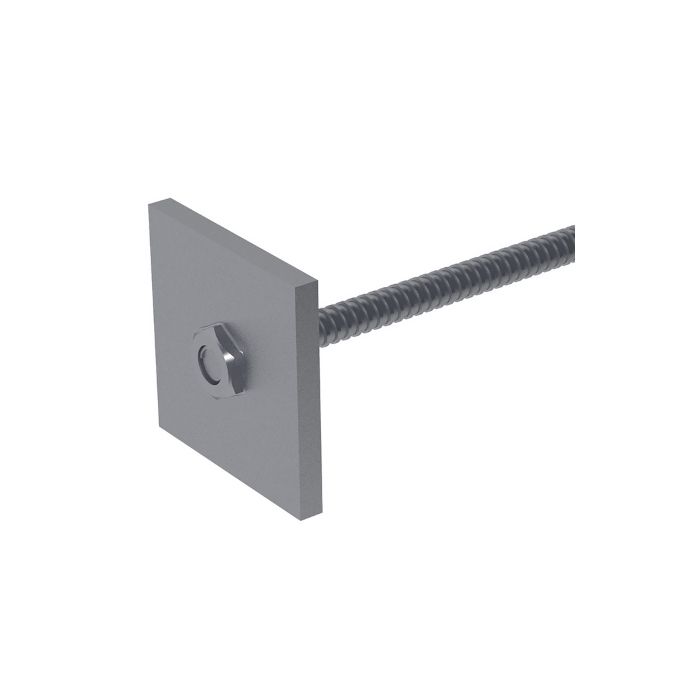

Anchor with the plate

Anchor with the plate

Download

Ask for the product

Product description

The anchor works well for single-side anchoring and structures with small wall thicknesses.

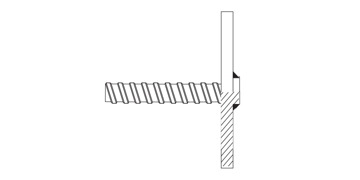

The element is made of a 90 x 120 x 10 mm plate and a threaded weldable rod 15.

Assortment

Art. no.	Designation	Thread	Length
Art. no.	Designation	mm	mm
23601	Anchor with the plate	15	100
23602	Anchor with the plate	15	160
23603	Anchor with the plate (GW)	20	275
23604	Anchor with the plate (ZW)	20	275
