3-wing plate nut

Download

Ask for the product

Product description

Forged plate nut.
Galvanized.
Compatible with SAS systems.

Assortment

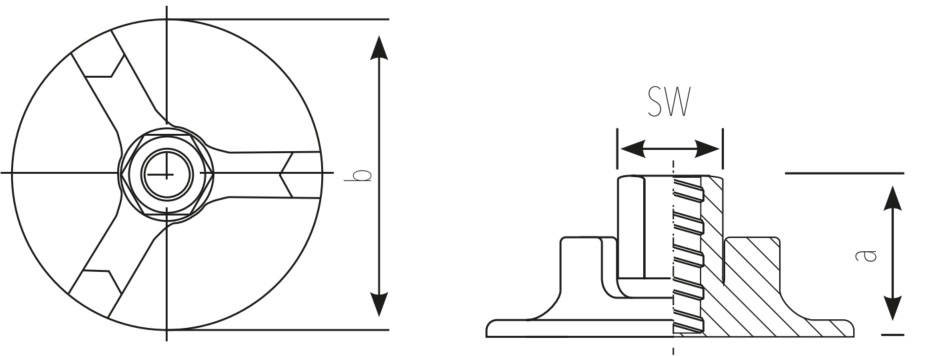

Art. no.	Name	Thread	Dimensions	SW	Package	Useful load	Weight
Art. no.	Name	mm	a x b (mm)	mm	pcs	kN	kg/pcs
20901	3-wing plate nut	15	54 x 70	27	25	90	0.43
20902		15	54 x 95	27	25	90	0.66
20903		15	54 x 100	27	25	90	0.70
20904		15	54 x 110	27	25	90	0.85
20905		15	54 x 130	27	25	90	1.16
20906		20	65 x 130	36	25	160	1.54
